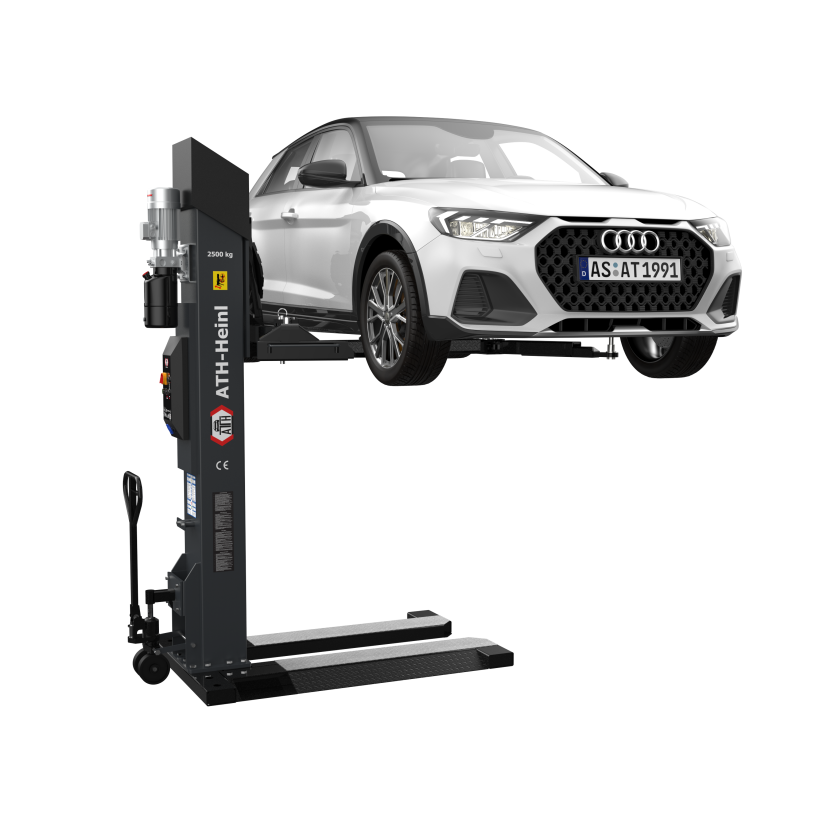

ATH Single Lift® 35M

1.350.000 kr.

The ATH Single Lift® 35M is an electrohydraulic single-post lift with a 3,500 kg capacity, a quick-lift power unit and a load-dependent lowering function. Thanks to the high-quality drive set, it is mobile and requires no floor anchoring. The multifunctional pick-up system with pull-out crossbeam, double-telescopic lifting arms and lifting pads including 4 X 80 mm extensions enables flexible vehicle lifting and maximum efficiency in everyday workshop use.

⇒PRODUCT FLYER

⇒3D / AR

Out of stock

Category:

Description

Product highlights

Electro-hydraulic 1-post lift with quick lift unit and load-dependent lowering function

Central control unit with energy set (230V / 12V)

Mobile use with the help of the high-quality wheel set, no attachment to the floor

Safety Control: Electromagnetic safety locks that automatically unlock with lifting and lowering

Safety Lock: ability to lock the load on to the safety mechanism

Multifunctional mounting via the pull-out crossbeam, double telescopic support arms and support plates including support plate extension 4 x 80mm

Product details

Rated load capacity 3500 kg
Lifting height max. 1853 mm
Overall width 2215 mm
Overall height 2725 mm
Support arms parts 3 St.
Driving power 3 kW
Lifting/Lowering time 45 | 45 s
Power supply voltage 3x 400V / C16A
Concrete strength C20/25 200 mm
Color RAL 7016 / RAL 9005
