Description
Product highlights

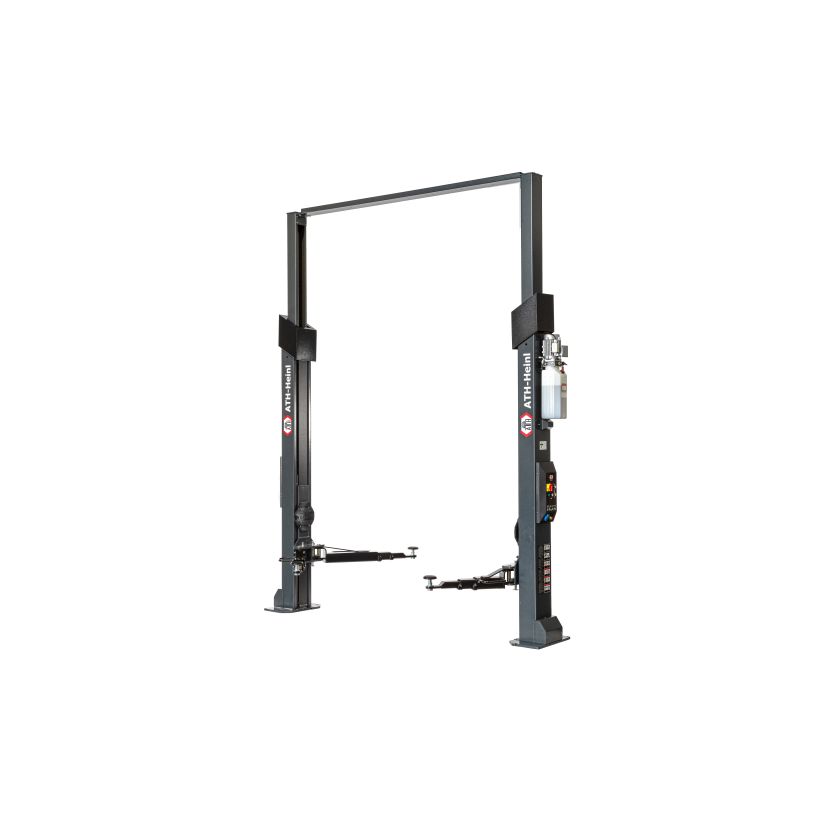

Electro-hydraulic 2-post lift with quick lift unit and load-dependent lowering function
Two control units for flexible use on both columns
Energy set (230V / compressed air / 12V) on both operating units
Safety Control: Electromagnetic safety locks that automatically unlock with lifting and lowering
Safety Lock: Load-lowering control onto the safety latches
Multifunctional mounting via 3-part support arms and double telescopic support plates
(from e.g. Smart to Crafter long at an alternative pick-up points)
Top-running crossbar with variable height adjustment
Product details
| Rated load capacity | 5500 kg |
|---|---|
| Lifting height max. | 1950 mm |
| Drive-through width | 2650 mm |
| Overall width | 3500 mm |
| Overall height | 5311 mm |
| Support arms parts | 3 St. |
| Driving power | 3 kW |
| Lifting/Lowering time | 40 | 40 s |
| Power supply voltage | 3x 400V / C16A |
| Concrete strength | C 25/30 4500 x 2000 x 220 mm |
| Color | RAL 7016 / RAL 9005 |
